    After a long wait, the Tor project is happy to announce a refresh of our Tor-enabled Android phone prototype.

    This prototype is meant to show a possible direction for Tor on mobile. While I use it myself for my personal communications, it has some rough edges, and installation and update will require familiarity with Linux.

    The prototype is also meant to show that it is still possible to replace and modify your mobile phone's operating system while retaining verified boot security - though only just barely. The Android ecosystem is moving very fast, and in this rapid development, we are concerned that the freedom of users to use, study, share, and improve the operating system software on their phones is being threatened. If we lose these freedoms on mobile, we may never get them back. This is especially troubling as mobile access to the Internet becomes the primary form of Internet usage worldwide.

    Quick Recap


    We are trying to demonstrate that it is possible to build a phone that respects user choice and freedom, vastly reduces vulnerability surface, and sets a direction for the ecosystem with respect to how to meet the needs of high-security users. Obviously this is a large task. Just as with our earlier prototype, we are relying on suggestions and support from the wider community.

    Help from the Community


    When we released our first prototype, the Android community exceeded our wildest expectations with respect to their excitement and contributions. The comments on our initial blog post were filled with helpful suggestions.

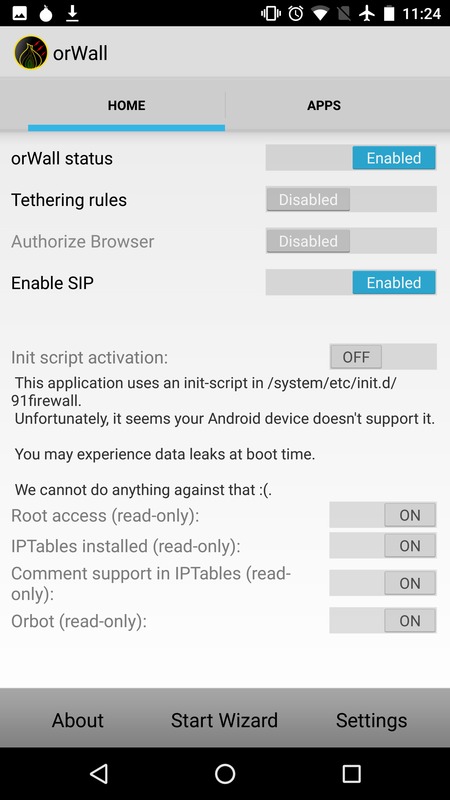

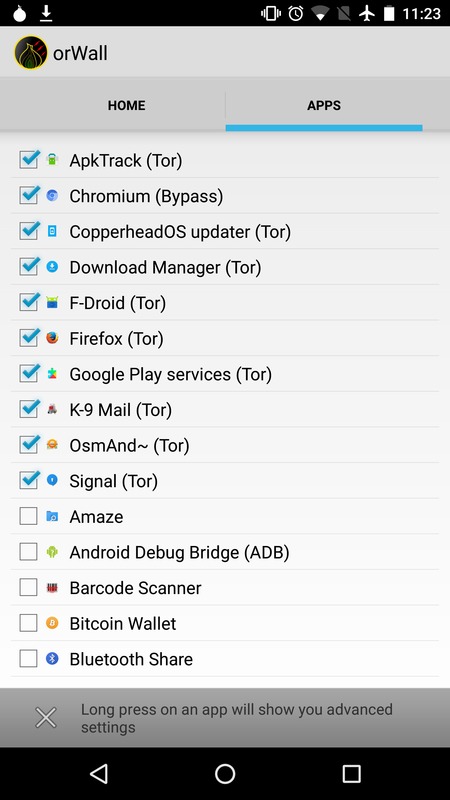

    Soon after that post went up, C├ędric Jeanneret took my Droidwall scripts and adapted them into the very nice OrWall, which is exactly how we think a Tor-enabled phone should work in general. Users should have full control over what information applications can access on their phones, including Internet access, and have control over how that Internet access happens. OrWall provides the networking component of this access control. It allows the user to choose which apps route through Tor, which route through non-Tor, and which can't access the Internet at all. It also has an option to let a specific Voice over IP app, like Signal, bypass Tor for the UDP voice data channel, while still sending call setup information over Tor.

    [​IMG] [​IMG]

    At around the time that our blog post went up, the Copperhead project began producing hardened builds of Android. The hardening features make it more difficult to exploit Android vulnerabilities, and also provides WiFi MAC address randomization, so that it is no longer trivial to track devices using this information.

    Copperhead is also the only Android ROM that supports verified boot, which prevents exploits from modifying the boot, system, recovery, and vendor device partitions. Coppherhead has also extended this protection by preventing system applications from being overridden by Google Play Store apps, or from writing bytecode to writable partitions (where it could be modified and infected). This makes Copperhead an excellent choice for our base system.

    The Copperhead Tor Phone Prototype


    Upon the foundation of Copperhead, Orbot, Orwall, F-Droid, and other community contributions, we have built an installation process that installs a new Copperhead phone with Orbot, OrWall, SuperUser, Google Play, and MyAppList with a list of recommended apps from F-Droid.

    We require SuperUser and OrWall instead of using the VPN APIs because the Android VPN APIs are still not as reliable as a firewall in terms of preventing leaks. Without a firewall-based solution, the VPN can leak at boot, or if Orbot is killed or crashes. Additionally, DNS leaks outside of Tor still occur with the VPN APIs on some systems.

    We provide Google Play primarily because Signal still requires it, but also because some users probably also want apps from the Play Store. You do not need a Google account to use Signal, but then you need to download the Signal android package and sideload it manually (via adb install).

    The need to install these components to the system partition means that we must re-sign the Copperhead image and updates if we want to keep the ability to have system integrity from Verified Boot.

    Thankfully, the Nexus Devices supported by Copperhead allow the use of user-generated keys. The installation process simply takes a Copperhead image, installs our additional apps, and signs it with the new keys.

    Systemic Threats to Software Freedom


    Unfortunately, not only is Copperhead the only Android rebuild that supports Verified Boot, but the Google Nexus/Pixel hardware is the only Android hardware that allows the user to install their own keys to retain both the ability to modify the device, as well as have the filesystem security provided by verified boot.

    This, combined with Google's increasing hostility towards Android as a fully Open Source platform, as well as the difficulty for external entities to keep up with Android's surprise release and opaque development processes, means that the ability for end-users to use, study, share, and improve the Android system are all in great jeopardy.

    This all means that the Android platform is effectively moving to a "Look but don't touch" Shared Source model that Microsoft tried in the early 2000s. However, instead of being explicit about this, Google appears to be doing it surreptitiously. It is a very deeply disturbing trend.

    It is unfortunate that Google seems to see locking down Android as the only solution to the fragmentation and resulting insecurity of the Android platform. We believe that more transparent development and release processes, along with deals for longer device firmware support from SoC vendors, would go a long way to ensuring that it is easier for good OEM players to stay up to date. Simply moving more components to Google Play, even though it will keep those components up to date, does not solve the systemic problem that there are still no OEM incentives to update the base system. Users of old AOSP base systems will always be vulnerable to library, daemon, and operating system issues. Simply giving them slightly more up to date apps is a bandaid that both reduces freedom and does not solve the root security problems. Moreover, as more components and apps are moved to closed source versions, Google is reducing its ability to resist the demand that backdoors be introduced. It is much harder to backdoor an open source component (especially with reproducible builds and binary transparency) than a closed source one.

    If Google Play is to be used as a source of leverage to solve this problem, a far better approach would be to use it as a pressure point to mandate that OEMs keep their base system updated. If they fail to do so, their users will begin to lose Google Play functionality, with proper warning that notifies them that their vendor is not honoring their support agreement. In a more extreme version, the Android SDK itself could have compiled code that degrades app functionality or disables apps entirely when the base system becomes outdated.

    While extreme, both of these options would be preferable to completely giving up on free and open computing for the future of the Internet. Google should be competing on device experience, app, and media store features. They should use their competitive position to encourage/enforce good OEM behavior, not to create barriers and bandaids that end up enabling yet more fragmentation due to out of date (and insecure) devices.

    It is for this reason that we believe that projects like Copperhead are incredibly important to support. Once we lose these freedoms on mobile, we may never get them back. It is especially troubling to imagine a future where mobile access to the Internet is the primary form of Internet usage, and for that usage, all users are forced to choose between having either security or freedom.

    Hardware Choice


    The hardware for this prototype is the Google Nexus 6P. While we would prefer to support lower end models for low income demographics, only the Nexus and Pixel lines support Verified Boot with user-controlled keys. We are not aware of any other models that allow this, but we would love to hear if there are any that do.

    In theory, installation should work for any of the devices supported by Copperhead, but updating the device will require the addition of an updater-script and an adaptation of the releasetools.py for that device, to convert the radio and bootloader images to the OTA update format.

    If you are not allergic to buying hardware online, we highly recommend that you order them from the Copperhead store. The devices are shipped with tamper-evident security tape, for what it's worth. Otherwise, if you're lucky, you might still be able to find a 6P at your local electronics retail store. Please consider donating to Copperhead anyway. The project is doing everything right, and could use your support.

    Hopefully, we can add support for the newer Pixel devices as soon as AOSP (and Copperhead) supports them, too.

    Installation


    Before you dive in, remember that this is a prototype, and you will need to be familiar with Linux.

    With the proper prerequisites, installation should be as simple as checking out the Mission Improbable git repository, and downloading a Copperhead factory image for your device.

    The run_all.sh script should walk you through a series of steps, printing out instructions for unlocking the phone and flashing the system. Please read the instructions in the repository for full installation details.

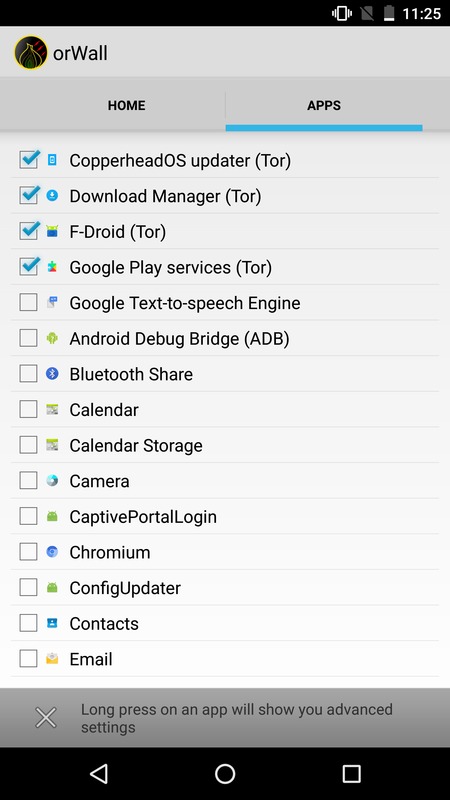

    The very first device boot after installation will take a while, so be patient. Once the system is installed, and you have given Google Play Services the Location and Storage permissions (as per the instructions printed by the script), you can start Orbot, and allow F-Droid, Download Manager, the Copperhead updater, Google Play Services (if you want to use Signal), and any other apps you want to access the network.

    [​IMG]
    Installation: F-Droid apps

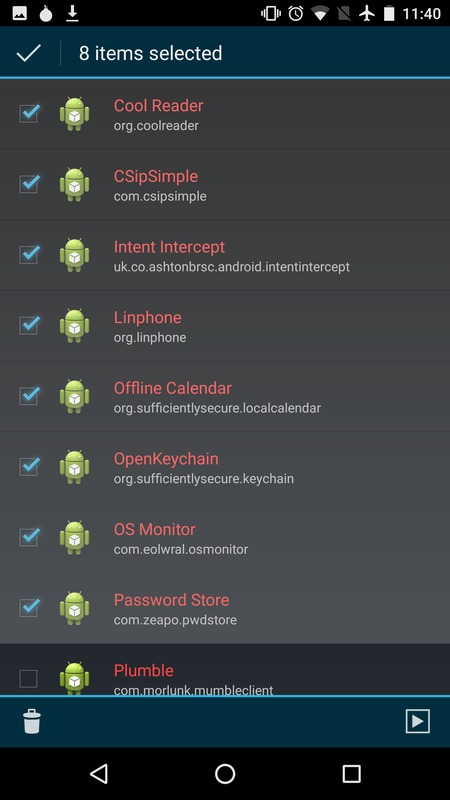

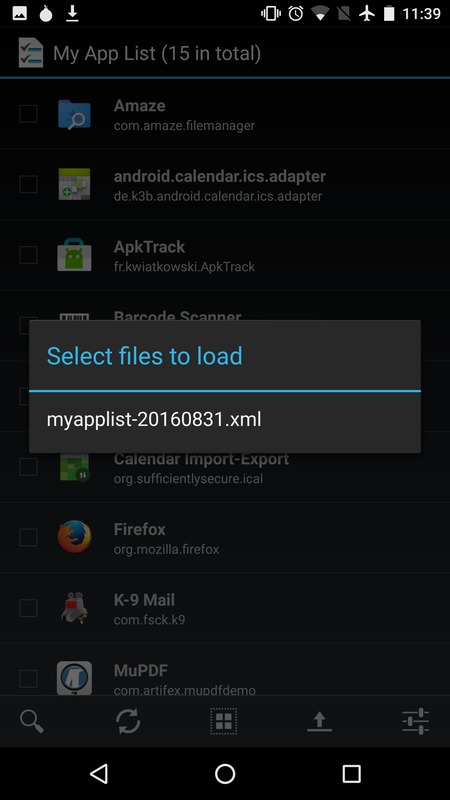

    Once you have networking and F-Droid working, you can use MyAppList to install apps from F-Droid. Our installation provides a list of useful apps for MyAppList. The MyAppsList app will allow you to select the subset you want, and install those apps in succession by invoking F-Droid. Start this process by clicking on the upward arrow at the bottom right of the screen:

    [​IMG] [​IMG]

    Alternately, you can add links to additional F-Droid packages in the apk url list prior to running the installation, and they will be downloaded and installed during run_all.sh.

    Installation: Signal


    Signal is one of the most useful communications applications to have on your phone. Unfortunately, despite being open source itself, Signal is not included in F-Droid, primarily due to its reliance on Google Cloud Messaging, which is not open source. It is unfortunate to see so much disagreement over this point, though. Even if Signal won't make the criterion for the official F-Drioid repo, we wish that at the very least it could meet the criterion for a "Non-Free" repo, much like the Debian project provides.

    For now, it is possible to download the Signal apks from one of the apk mirror sites (such as APK4fun, apk-dl.com, apkdot.com, or apkplz.com). To ensure that you have the official Signal apk, perform the following:

    1. Download the apk.
    2. Unzip the apk with unzip org.thoughtcrime.securesms.apk
    3. Verify that the signing key is the official key with sha256sum META-INF/CERT.RSA
      You should see a1369bbe179af5bf84fea5d935d49b35d37da3fca63d363ce495bf2d65bf5a72 META-INF/CERT.RSA
    4. Verify that the contents of that APK are properly signed by that cert with: jarsigner -verify org.thoughtcrime.securesms.apk. You should see jar verified printed out.

    5. Then, you can install the Signal APK via adb with adb install org.thoughtcrime.securesms.apk.

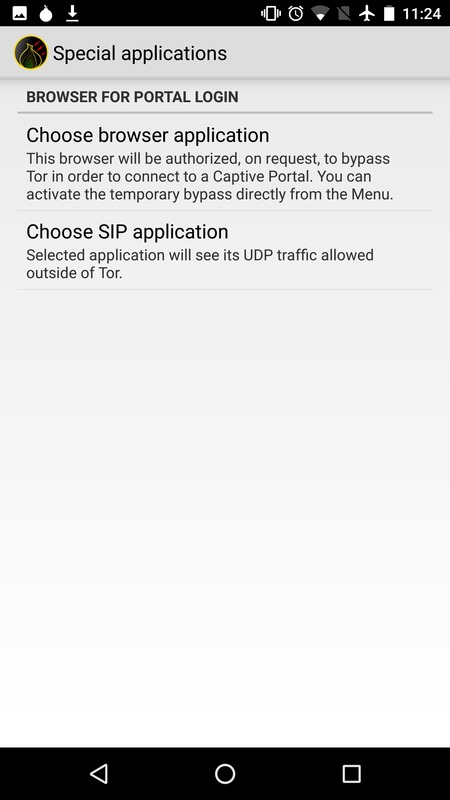

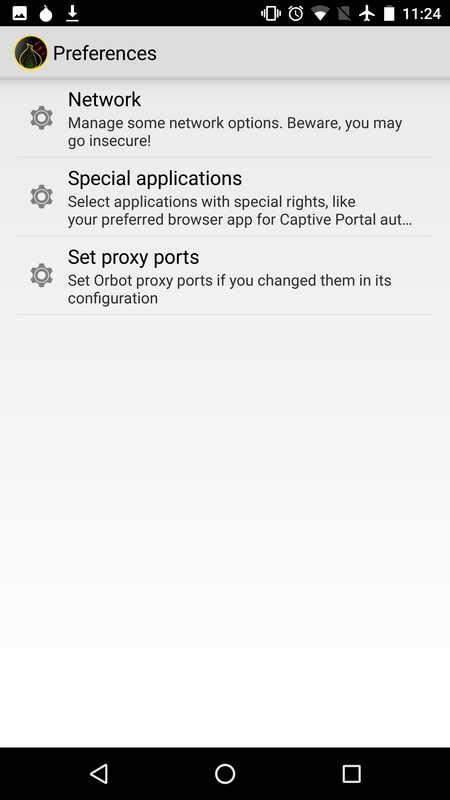

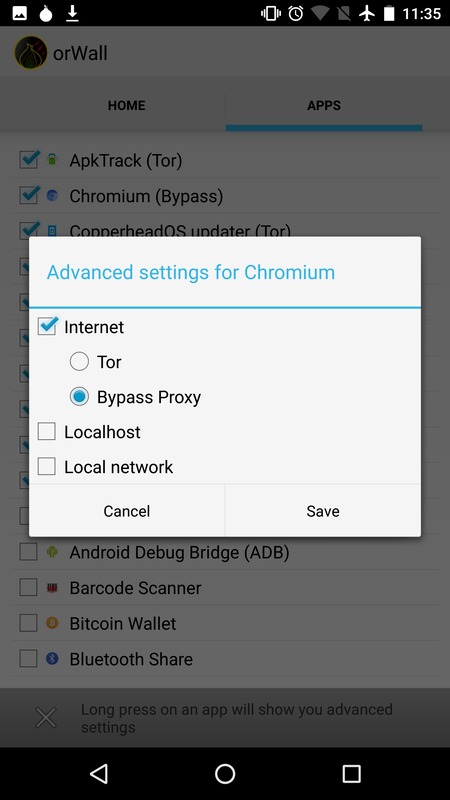

      For voice calls to work, select Signal as the SIP application in OrWall, and allow SIP access.

      [​IMG] [​IMG] [​IMG]
      Updates


      Because Verified Boot ensures filesystem integrity at the device block level, and because we modify the root and system filesystems, normal over the air updates will not work. The fact that we use different device keys will prevent the official updates from installing at all, but even if they did, they would remove the installation of Google Play, SuperUser, and the OrWall initial firewall script.

      When the phone notifies you of an update, you should instead download the latest Copperhead factory image to the mission-improbable working directory, and use update.sh to convert it into a signed update zip that will get sideloaded and installed by the recovery. You need to have the same keys from the installation in the keys subdirectory.

      The update.sh script should walk you through this process.

      Updates may also reset the system clock, which must be accurate for Orbot to connect to the Tor network. If this happens, you may need to reset the clock manually under Date and Time Settings

      Usage


      I use this prototype for all of my personal communications - Email, Signal, XMPP+OTR, Mumble, offline maps and directions in OSMAnd, taking pictures, and reading news and books.

      For Internet access, I personally use a secondary phone that acts as a router for this phone while it is in airplane mode. That phone has an app store and I use it for less trusted, non-private applications, and for emergency situations should a bug with the device prevent it from functioning properly. However, it is also possible to use a cheap wifi cell router, or simply use the actual cell capabilities on the phone itself. In that case, you may want to look into CSipSimple, and a VoIP provider.

      For situations where using the cell network at all is either undesirable or impossible (perhaps because it is disabled due to civil unrest), the mesh network messaging app Rumble shows a lot of promise. It supports both public and encrypted groups in a Twitter-like interface run over either a wifi or bluetooth ad-hoc mesh network. It could use some attention.

      Future Work


      Like the last post on the topic, this prototype obviously has a lot of unfinished pieces and unpolished corners. We've made a lot of progress as a community on many of the future work items from that last post, but many still remain.

      Future work: More Device Support


      As mentioned above, installation should work on all devices that Copperhead supports out of the box. However, updates require the addition of an updater-script and an adaptation of the releasetools.py for that device, to convert the radio and bootloader images to the OTA update format.

      Future Work: MicroG support


      Instead of Google Play Services, it might be nice to provide the Open Source MicroG replacements. This requires some hackery to spoof the Google Play Service Signature field, though. Unfortunately, this method creates a permission that any app can request to spoof signatures for any service. We'd be much happier about this if we could find a way for MicroG to be the only app to be able to spoof permissions, and only for the Google services it was replacing.
      Future Work: Netfilter API (or better VPN APIs)


      Back in the WhisperCore days, Moxie wrote a Netfilter module using libiptc that enabled apps to edit iptables rules if they had permissions for it. This would eliminate the need for root and crazy iptables shell callouts for using OrWall. This approach would be more stable and less leaky than the current VPN APIs, and would eliminate the need to have root access on the device (which is additional vulnerability surface).

      Alternatively, the VPN API could be used, if there were ways to prevent leaks at boot, DNS leaks, and leaks if the app is killed or crashes. We'd also want the ability to control specific app network access, and allow bypass of UDP for VoIP apps.

      Future Work: Fewer Binary Blobs


      There are unfortunately quite a few binary blobs extracted from the Copperhead build tree in the repository. They are enumerated in the README. This was done for expedience. Building some of those components outside of the android build tree is fairly difficult. We would happily accept patches for this, or for replacement tools.

      Future Work: F-Droid auto-updates, crash reporting, and install count analytics


      These requests come from Moxie. Having these would make him much happier about F-Droid Signal installs.

      Future Work: Build Reproducibility


      Copperhead itself is not yet built reproducibly. It's our opinion that this is the AOSP's responsibility, though. If it's not the core team at Google, they should at least fund Copperhead or some other entity to work on it for them. Reproducible builds should be an organizational priority for all software companies. Moreover, in combination with free software, they are an excellent deterrent against backdoors.

      In this brave new world, even if we can trust that the NSA won't be ordered to attack American companies to insert backdoors, deteriorating relationships with China and other state actors may mean that their incentives to hold back on such attacks will be greatly reduced. Closed source components can also benefit from reproducible builds, since compromising multiple build systems/build teams is inherently harder than compromising just one.

      Future Work: Orbot Stability


      Unfortunately, the stability of Orbot itself still leaves a lot to be desired. It is fairly fragile to network disconnects. It often becomes stuck in states that require you to go into the Android Settings for Apps, and then Force Stop Orbot in order for it to be able to reconnect properly. The startup UI is also fragile to network connectivity. If you tap the start button either too hard or multiple times while the network is connected, Orbot can become confused and say that it is connected when it is not. Luckily, because the Tor network access security is enforce by Orwall (and the Android kernel), instabilities in Orbot do not risk Tor leaks.

      Future Work: Backups and Remote Wipe


      Unfortunately, backups are an unsolved problem. In theory, adb backup -all should work, but even the latest adb version from the official Android SDK appears to only backup and restore partial data. Instead, I use the export feature of K-9 Mail, Contacts, and the Calendar Import-Export app to export that data to /sdcard, and then adb pull /sdcard. It would be nice to have an end-to-end encrypted remote backup app, though. Flock had promise, but was unfortunately discontinued.

      Similarly, if a phone is lost, it would be nice to have a cryptographically secure remote wipe feature.

      Future Work: Baseband Analysis (and Isolation)


      Until phones with auditable baseband isolation are available, the baseband remains a problem on all of these phones. It is unknown if vulnerabilities or backdoors in the baseband can turn on the mic, make silent calls, or access device memory. Using a portable hotspot or secondary insecure phone is one option for now, but it is still unknown if the baseband is fully disabled in airplane mode. In the previous post, commenters recommended wiping the baseband, but on most phones, this seems to also disable GPS.

      It would be useful to audit whether airplane mode fully disables the baseband using either OpenBTS, OsmocommBB, or a custom hardware monitoring device.

      Future Work: Wifi AP Scanning Prevention


      Copperhead may randomize the MAC address, but it is quite likely that it still tries to connect to configured APs, even if they are not there (see these two XDA threads). This can reveal information about your home and work networks, and any other networks you have configured.

      There is a Wifi Privacy Police App in F-Droid, and Smarter WiFi may be another option, but we have not yet had time to audit/test either. Any reports would be useful here.

      Future Work: Port Tor Browser to Android


      The Guardian Project is undertaking a port of Tor Browser to Android as part of their OrFox project. This port is still incomplete, however. The Tor Project is working on obtaining funding to bring it on par with the desktop Tor Browser.

      Future Work: Better SIP Support


      I find myself often using VoIP/SIP numbers, for an additional layer of protection between the phone number I give people, and the phone number of my actual cell device. This is a trade-off, though, as you are trusting the VoIP provider with your voice data, and on top of this, many of them do not support encryption for call signaling or voice data.

      Two things could make this better: wider support for SRTP and TLS from VoIP providers (I could find only two), and support for multiple SIP applications inside OrWall. Currently, you have to switch the SIP app between Signal and CSipSimple, which is fragile.
