Another ecom rig

Discussion in 'General Survival and Preparedness' started by stg58, Dec 4, 2006.


  1. stg58

    stg58 Monkey+++ Site Supporter+ Founding Member

    First off us hams love to talk about our radios[winkthumb]:D

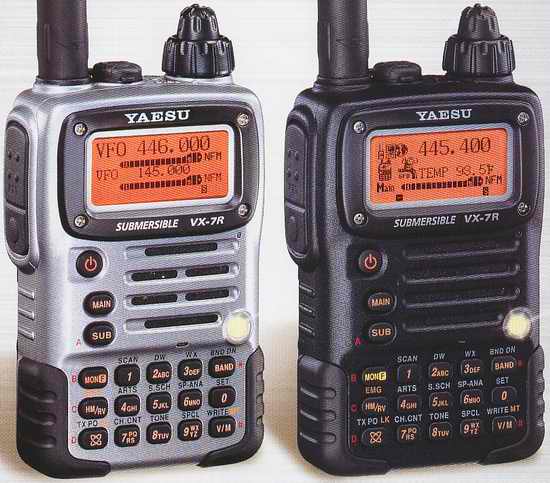

    This one will also receive am/fm, tv audio, police bands, military bands and shortwave radio.
    It is waterproof and suposedly submersible.
    With this and an HF rig that does 2M,440 or 6m and an antenna on your roof will give you miles of coverage around your home.
    It can be modified to transmit outside the ham bands.




    <table style="font-size: x-small;" border="0"><tbody><tr bgcolor="#ffffcc"><td>Type:</td><td>Amateur VHF/UHF transceiver</td> </tr> <tr> <td>Frequency range:</td><td>TX: 50-54 / 144-146 / 430-440 MHz (Europe)
    TX: 50-54 / 144-148 / 222-225 / 440-450 MHz (USA)
    RX: 0.5-999 MHz (Cellular blocked in the US)</td> </tr> <tr bgcolor="#e6e6e6"> <td>Mode:</td><td>TX: AM/FM
    RX: AM/FM/WFM</td> </tr> <tr> <td>RF Power output:</td><td>Hi: 5/5/5 W
    Low3: 2.5/2.5/2.5 W
    Low2: 1/1/1 W
    Low1: 0.5/0.5/0.5 W
    0.3 W (220 MHz, FM), 1 W (50 MHz, AM)</td> </tr> <tr bgcolor="#e6e6e6"> <td>Sensitivity:</td><td>N/A</td> </tr> <tr> <td>Selectivity:</td><td>N/A</td> </tr> <tr bgcolor="#e6e6e6"> <td>Image rejection:</td><td>N/A</td> </tr> <tr> <td>Voltage:</td><td>7.2 VDC (internal), 10-16 VDC (external)</td> </tr> <tr bgcolor="#e6e6e6"> <td>Current drain:</td><td>RX: 25-200 mA
    TX: 0.6-1.8 A</td> </tr> <tr> <td>Impedance:</td><td>50 ohms, SMA</td> </tr> <tr bgcolor="#e6e6e6"> <td>Dimensions (W*H*D):</td><td>60*90*28 mm</td> </tr> <tr> <td>Weight:</td><td>250 gr</td> </tr> <tr bgcolor="#e6e6e6"> <td>Manufactured:</td><td>2002-200x</td> </tr> <tr> <td>Other:</td><td>500 memories. Waterproof/submersible. Twin RX</td></tr></tbody></table>








    [​IMG]

  2. TailorMadeHell

    TailorMadeHell Lurking Shadow Creature

    Well, you have a good company supplying. I have a friend that is a NERT something or other and also a HAM operator and he swears by Yaesu. Most of his gear is built by them and it seems to me to work great, though I don't know much about the ability to do so. I know a little about CBs, though don't get me to lieing when it comes to HAM.

  3. Jolly Roger

    Jolly Roger Patriotic Pirate

    Those look great. I might have to upgrade from the VX-1R.
